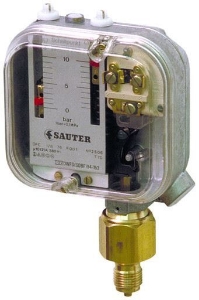

Bild von Sauter Druckschalter 0-16bar Fühler aus Messing - Art.-Nr.: DFC17B78F001
Hersteller: Sauter

Sauter Druckschalter 0-16bar Fühler aus Messing - Art.-Nr.: DFC17B78F001

CHF 1’022.60
CHF 828.35

Typ: DFC17B78F001

Setting range: 0...16

Schaltdifferenz: 0.50 bar

Maximum pressure: 40 bar

Max. temp.(°C): 70

Permissible vacuum loading: -1.0 bar

Gewicht: 1,1 kg

Artikelnummer: DFC17B78F001

DFC 17B, 27B: Heavy-duty pressure switch

Features
•
−1…50 bar setting range
•
1 mA/6 V to 10 A/400 V contact rating
•
Gold-plated silver contacts, vibration-proof snap-action switch with single-pole change-over switch
•
Upper and lower switching points can be set independently of each other
•
Sealable
•
Splashproof
•
DFC17B**F001: Pressure sensor of brass for non-aggressive media
•
DFC27B*F002: Pressure sensor of stainless steel for aggressive media
*
*
*

DFC 17B, 27B: Heavy-duty pressure switch

Features
•
−1…50 bar setting range
•
1 mA/6 V to 10 A/400 V contact rating
•
Gold-plated silver contacts, vibration-proof snap-action switch with single-pole change-over switch
•
Upper and lower switching points can be set independently of each other
•
Sealable
•
Splashproof
•
DFC17B**F001: Pressure sensor of brass for non-aggressive media
•
DFC27B*F002: Pressure sensor of stainless steel for aggressive media
